Detalhes do produto:
Lugar de origem: Shenzhen,China
Marca: DUALRAYS/OEM/OEM/OBM Optioanal
Certificação: CE,RoHS,TUV/GS,LM79,LM80
Número do modelo: DR-MFLXXXX-7XX-BCPX-DGBX3
Documento: DUALRAYS Warrantee Agreemen...H2.pdf
Condições de Pagamento e Envio:
Quantidade de ordem mínima: 1PCS
Preço: Please contact us for details.
Detalhes da embalagem: Pacote Netural, pacote DUALRAYS/ODM/OEM/OBM opcional
Tempo de entrega: 50000 unidades/mês
Termos de pagamento: L/C, T/T, Western Union, Paypal
Contato
Descrição de produto detalhada
Tensão de entrada: AC100-240V Eficiência energética: 95%
Energia de Emergência: 5W Material: Carcaça AL fundida sob pressão de grau marinho de alta pressão para atingir o nível WF2 revestido a
Classificação IP: IP66 Vida útil: 100.000 horas
Óptica: 50-70W/Módulo * 30°/60°/90°/120°Simétrico, 49* 21°/54* 40°/90* 110°/70* 140°/80* 140°/136* 78° Assim Suporte: Suporte e ferragens em aço inoxidável 316 para máxima resistência a Corroston
Destacar:

50W marine flood light

,

stainless steel 316 marine light

,

corrosion resistant marine LED light

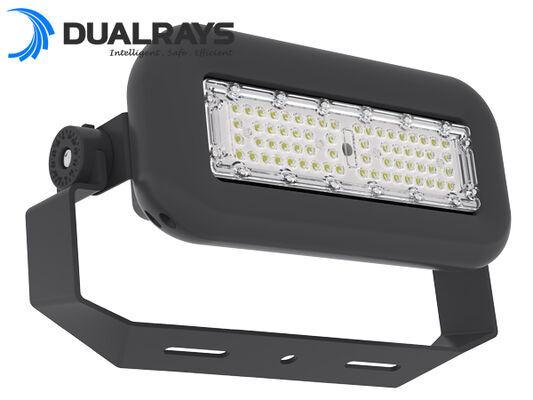

MFL4 LED Marine Flood Light - 50W

Versatile and rugged floodlight designed for marine, port, and industrial applications where saltwater exposure demands enhanced corrosion protection.

Product Overview

The MFL4 LED Marine Flood Light combines robustness, long outdoor service life, and excellent energy-saving performance. It provides high consistency and high-CRI white light, making it the ideal replacement for traditional HID 100/300/500/1000W luminaires.

The fixture includes customized SS316 stainless steel mounting brackets for quick and easy installation and is built with stainless steel hardware for maximum corrosion resistance. Ready for smart functions such as DMX512 or wireless Zigbee control, offering intelligent lighting solutions.

50W Marine Flood Light applications with stainless steel 316 hardware where saltwater exposure demands enhanced corrosion protection 0 50W Marine Flood Light applications with stainless steel 316 hardware where saltwater exposure demands enhanced corrosion protection 1
Key Features
  • High Brightness SAN'AN LUMILEDS LUXEON SMD3030 2D / SMD5050 LEDs, Meanwell XLG / PHILIPS Driver Optional
  • Marine Grade AL Housing: High pressure marine graded die-cast AL housing to achieve WF2 level, Precision Integrated Die-casting ADC12 AL, Excellent Thermal Conductivity
  • Stainless Steel 316 Hardware: Stainless steel bracket and hardware for maximum corrosion resistance
  • IP66 / IK10 Protection
  • Multiple Optical Options: 30°/60°/90°/120° Symmetric, 49*21°/54*40°/90*110°/70*140°/80*140°/143*50/136*78° / 143*50° Asymmetric, 45° polarized, 60° polarized (developing) optic Optional
  • Various Intelligent Control: 1-10V, DALI, DMX512, Zigbee for Option
  • No UV or IR and completely mercury free
  • L80/B10 @ 100,000 hours
  • Customized supported for special projects
Configuration Options
  • Driver: Meanwell/SOSEN/PHILIPS, DURALYS own-developed driver, durable and compact
  • LEDs: LUMILEDS/SAN'AN LEDs Optional
  • Efficiency: 130LPW/160LPW Optional
  • Controls and Dimming: 1-10V, DALI, DMX512, Zigbee for Option
  • Optical Lens: Multiple symmetric and asymmetric beam angles available
50W Marine Flood Light applications with stainless steel 316 hardware where saltwater exposure demands enhanced corrosion protection 2
Applications
  • Fishing vessels
  • Maritime vessel decks
  • Overhead cranes & Gantry cranes
  • Offshore drilling platforms
  • High mast area lighting
  • Harbor facilities
50W Marine Flood Light applications with stainless steel 316 hardware where saltwater exposure demands enhanced corrosion protection 3 50W Marine Flood Light applications with stainless steel 316 hardware where saltwater exposure demands enhanced corrosion protection 4 50W Marine Flood Light applications with stainless steel 316 hardware where saltwater exposure demands enhanced corrosion protection 5 50W Marine Flood Light applications with stainless steel 316 hardware where saltwater exposure demands enhanced corrosion protection 6 50W Marine Flood Light applications with stainless steel 316 hardware where saltwater exposure demands enhanced corrosion protection 7 50W Marine Flood Light applications with stainless steel 316 hardware where saltwater exposure demands enhanced corrosion protection 8 50W Marine Flood Light applications with stainless steel 316 hardware where saltwater exposure demands enhanced corrosion protection 9
General System Specifications
Housing MaterialHigh pressure die-cast ADC12 aluminium according to UNE EN 1706 standard powder coated
Housing ColorMetallic Black (RAL9017), Other colors optional
Sealing GasketsSilicone foam
LEDs Thermal DissipationThrough finless ADC12 AL luminaire body, passive convection dissipation
BracketsSS316 Marine Grade U Shape Bracket with 360° Rotatable
Recommended Mounted Height5 - 20 meters
MaintenanceEasy, opening with screw driver, modular concept for easy component replacement
DriverConstant current adjustable and programmable driver embedded in galvanised driver box
IP RatingIP66
IK RatingIK10
Protective ClassClass I
Cable EntryH05RN-F 3*1.5mm² | H05RN-F 5*1.5mm² (Max section 4mm²)
Surge Voltage ResistanceCM: 10kV, DM: 6kV
SPD (optional)10kV-10kA, type II, with LED signal and thermo fuse
InstallationBracket installation, suitable for ground, wall, high mast and other solid planes
Smart Function0-10V, PWM, Time control, DMX, Zigbee, DALI
Electrical System Specifications
Main Voltage100~277VAC/ 50~60Hz | 277~480VAC/ 50~60Hz
Power Factor (PF)≥0.95
Total Harmonic Distortion (THD)＜10%
Output TypeNon-SELV (non-isolated)
Flicker Factor<1%
Driver efficacy>90%
Energy classA++ IPEA>1.15
Photometry System Specifications
LEDsSMD3030 / SMD5050 Optional
CCTSingle CCT (3000K | 4000K | 5000K | 5700K | 6500K)
CRI>70Ra for standard (>80Ra for higher CRI available)
Photobiological SafetyRG0 (exempt of risk)
Upward light output ratioULOR 0%
Downward light output ratioDLOR 100%
Glare indexBetween D5 and D6
Luminous intensity categoryBetween G*4 and G*6
Luminous flux CIE nº3>95%
SDCM＜6
Beam AngleMultiple symmetric and asymmetric options available
Average Luminaire Useful Lifetime100,000 hours (L80B10)
Lumen Maintenance at e.o.l.>70%
Luminous Efficacy130LPW (PROLine) | 160LPW (PRIMELine) Optional
Luminous Output Specifications
Rated Power50W100W150W200W300W400W500W
Lumens Delivered @ 5000K, CRI>70 (PRO)6,500lm13,000lm19,500lm27,000lm39,000lm52,000lm65,000lm
Lumens Delivered @ 5000K, CRI>70 (PRIME)8,000lm16,000lm24,000lm32,000lm48,000lm64,000lm80,000lm
Operation Conditions
Operation Temperature / Humidity-40~ +50℃ (-40°F ~ 122°F) / 10~90% RH, not condensed
Storage Temperature / Humidity-40~ +80℃ (-40°F ~ 176°F) / 10~90% RH, not condensed
Average LED Useful Time L80B10≥100,000H
Rated Nominal Lifetime (Tp <70℃)Up to 100,000H
Driver MTBF500,000H, MIL-HDBK-217F(25℃)
Vibration Resistant10~500Hz, 5G 12min / 1cycle, period for 72min. Each along X,Y,Z axes
Acoustic Noise＜25dB (30cm distance, Normal operation)
Guarantee5 Years (Extensible up to 7 years)
Certifications
  • Global Certificate: ENEC | CE | RoHS | D-mark | KEMA-KEUR Listed, SAA | C-Tick | RCM | CB | ETL/CETL | DLC Premium
  • Security Directives: EN 60598-1 | EN 60598-2-3 | EN 62493 | IEC 62471
  • EMC Directives: EN 55015 | EN 61547 | EN 61000-3-2 | EN 61000-3-3 | EN 61347-2-13 | EN 61347-1 | EN 62384
  • Other Directives: IEC 62262 | EN 13032-4 | EN 62717 | EN 6272-1 | EN6272-2-1 | EN 61643-11
Important Notes
  • Luminous flux tolerance, Power tolerance and color temperature tolerance ±5%, 5000K and CRI>70
  • Lighting beam, light intensity distribution and light efficiency examined in accordance with EN ISO 17025:2005 norm for EN13032 norm series and LM-79 norm
  • Up-to-date product info and general warranty terms available on www.DUALRAYS.com
  • Detailed information on luminous fluxes and powers for individual indexes indicated on product data sheet
  • Values may be subject to change due to LED binning
  • Parameters given for Ta=25°C, based on 5000K/70Ra
  • Power tolerance with ZHAGA version or power supply D4i/SR: ±10%
50W Marine Flood Light applications with stainless steel 316 hardware where saltwater exposure demands enhanced corrosion protection 10 50W Marine Flood Light applications with stainless steel 316 hardware where saltwater exposure demands enhanced corrosion protection 11 50W Marine Flood Light applications with stainless steel 316 hardware where saltwater exposure demands enhanced corrosion protection 12 50W Marine Flood Light applications with stainless steel 316 hardware where saltwater exposure demands enhanced corrosion protection 13 50W Marine Flood Light applications with stainless steel 316 hardware where saltwater exposure demands enhanced corrosion protection 14 50W Marine Flood Light applications with stainless steel 316 hardware where saltwater exposure demands enhanced corrosion protection 15
Installation Instructions

Turn off the power, connect AC wire. For dimmable driver models:

  1. Compatible with 0-10V dimming
  2. Connect wires as per wiring diagram
50W Marine Flood Light applications with stainless steel 316 hardware where saltwater exposure demands enhanced corrosion protection 16 50W Marine Flood Light applications with stainless steel 316 hardware where saltwater exposure demands enhanced corrosion protection 17 50W Marine Flood Light applications with stainless steel 316 hardware where saltwater exposure demands enhanced corrosion protection 18 50W Marine Flood Light applications with stainless steel 316 hardware where saltwater exposure demands enhanced corrosion protection 19 50W Marine Flood Light applications with stainless steel 316 hardware where saltwater exposure demands enhanced corrosion protection 20 50W Marine Flood Light applications with stainless steel 316 hardware where saltwater exposure demands enhanced corrosion protection 21
Packaging Specifications
Power/WInner BoxOuter CartonQTY/CTNUnit N.WG.W/Carton
50260x150x425mm635x540x445mm8PCS3.6Kg32.8Kg
100300x150x425mm635x620x445mm8PCS5.8Kg51.6Kg
150405x150x425mm635x420x445mm4PCS7.4Kg33.5Kg
200415x150x410mm635x430x430mm4PCS9.3Kg42.7Kg
250415x150x485mm415x150x485mm1PCS13.9Kg16.3Kg
300415x150x560mm415x150x560mm1PCS16.3Kg19.5Kg
400415x150x560mm415x150x560mm1PCS19.5Kg22.8Kg
500415x150x635mm415x150x635mm1PCS22.8Kg25.5Kg
50W Marine Flood Light applications with stainless steel 316 hardware where saltwater exposure demands enhanced corrosion protection 22 50W Marine Flood Light applications with stainless steel 316 hardware where saltwater exposure demands enhanced corrosion protection 23
Safety Instructions
  • To avoid electric shock, ensure power supply is turned off before installation
  • Install and operate by qualified electrician in accordance with National Electrical Code and local codes
  • Unpack and examine lamp carefully, report any damage and save packing materials
  • If the lamp is damaged, do not use it!
Manufacturer Statement

DUALRAYS LED Marine Flood Light series products are designed for marine and industrial applications. DUALRAYS provides full warranty for products used in specified environments. Any severe environment application including high/low temperature, high humidity, high salinity, high-ammonia etc. requires official confirmation from the manufacturer. Misapplication voids warranty policy.

50W Marine Flood Light applications with stainless steel 316 hardware where saltwater exposure demands enhanced corrosion protection 24
Company Advantages
  • Professional Team: >15 years experience, own factory, >10 engineers team, powerful production capacity and QC management system
  • Reliable Brand: Stable long-term cooperation with Europe customers, warehouse in Netherlands for better service
  • DIALux Simulation: Our engineering team provides simulation services based on your application parameters
  • Quality Standards: All LED luminaries comply with CE, RoHS standards. TUV, ENEC, VDE, SAA, C-Tick, LM79, LM80 listed for leading products
50W Marine Flood Light applications with stainless steel 316 hardware where saltwater exposure demands enhanced corrosion protection 25 50W Marine Flood Light applications with stainless steel 316 hardware where saltwater exposure demands enhanced corrosion protection 26 50W Marine Flood Light applications with stainless steel 316 hardware where saltwater exposure demands enhanced corrosion protection 27 50W Marine Flood Light applications with stainless steel 316 hardware where saltwater exposure demands enhanced corrosion protection 28 50W Marine Flood Light applications with stainless steel 316 hardware where saltwater exposure demands enhanced corrosion protection 29 50W Marine Flood Light applications with stainless steel 316 hardware where saltwater exposure demands enhanced corrosion protection 30
Shipping Information

For small orders: Express shipping recommended. For bulk orders: Sea or train shipping (Europe destination) recommended but takes longer. For urgent orders: Air freight to airport plus our shipping partner delivery to your door.

50W Marine Flood Light applications with stainless steel 316 hardware where saltwater exposure demands enhanced corrosion protection 31 50W Marine Flood Light applications with stainless steel 316 hardware where saltwater exposure demands enhanced corrosion protection 32
Frequently Asked Questions
Q1: What is the warranty for the MFL4 LED Marine Flood Light?
5 years warranty, extendable to 7 years. If any quality problems occur on our side during this period, we cover shipping costs and replacement.
Q2: What payment methods do you accept?
Western Union, Paypal, T/T, L/C. Standard payment for bulk orders: 30% T/T in advance, balance 70% before shipment.
Q3: What is CRI?
CRI (Color Rendering Index) indicates how accurately colors appear under the light. Higher CRI provides better color representation.
Q4: Can I buy only the housing separately?
We only supply complete luminaire fixtures, but SKD/CKD (Semi-Knocked Down/Completely Knocked Down) options are available.
Q5: What are the shipping costs to my country?
Small orders: Express shipping. Bulk orders: Sea or train shipping (to Europe). Urgent orders: Air freight to airport plus local delivery.
Q6: Can we get marketing support?
Yes, please share your market requirements and we'll provide helpful suggestions and solutions.
Q7: What dimming functions are available?
DALI, PIR, 1-10V dimming available. Built-in daylight sensor for intelligent control optional.
Q8: What are the applications of your MFL4 LED Marine Flood Light?
Fishing vessels, maritime vessel decks, overhead cranes, gantry cranes, offshore drilling platforms, high mast area lighting, harbor facilities.
Contact Information

Welcome to contact us for more information. Visit our official website www.DUALRAYS.com or email us at info@DUALRAYS.com for the latest information and support.

About DUALRAYS

Thank you for choosing DUALRAYS LED luminaires. We prioritize quality in all our product designs and packaging. All products are professionally tested and comply with strict quality standards. Our professional after-sales service team supports our customers throughout the guarantee period. If any quality problems occur during the guarantee period, contact us immediately. When confirmed by our QC Department, we will exchange or maintain products free of charge.

Shenzhen Dualrays Optoelectronics Co., LIMITED serves you with heart and soul!
